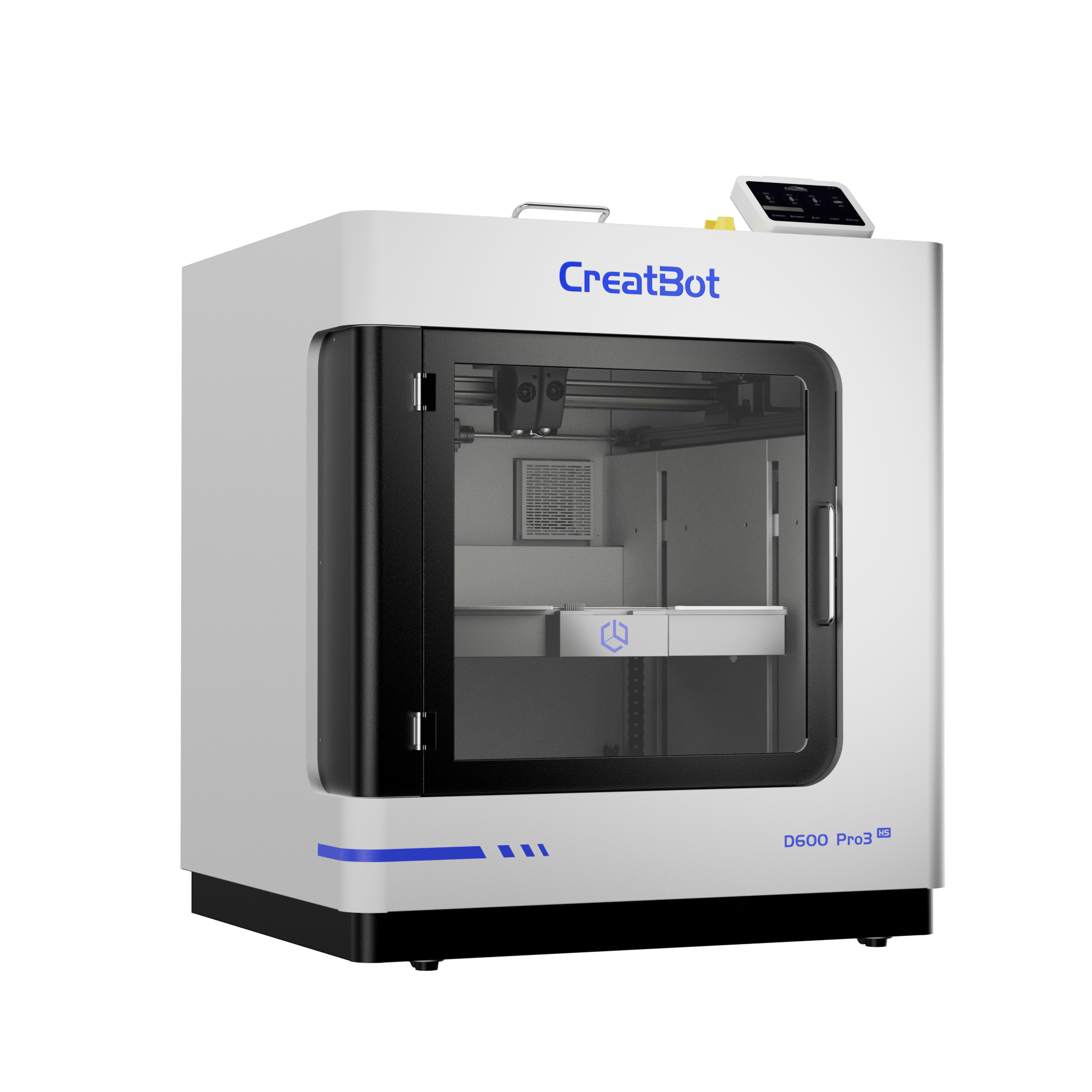

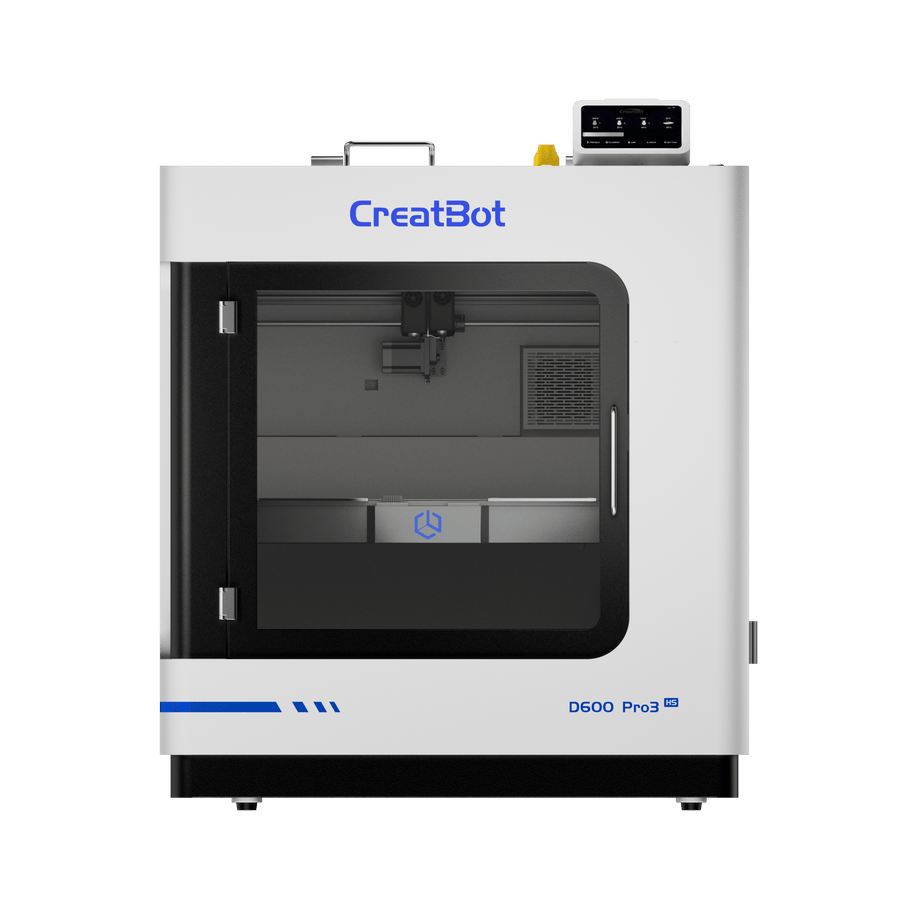

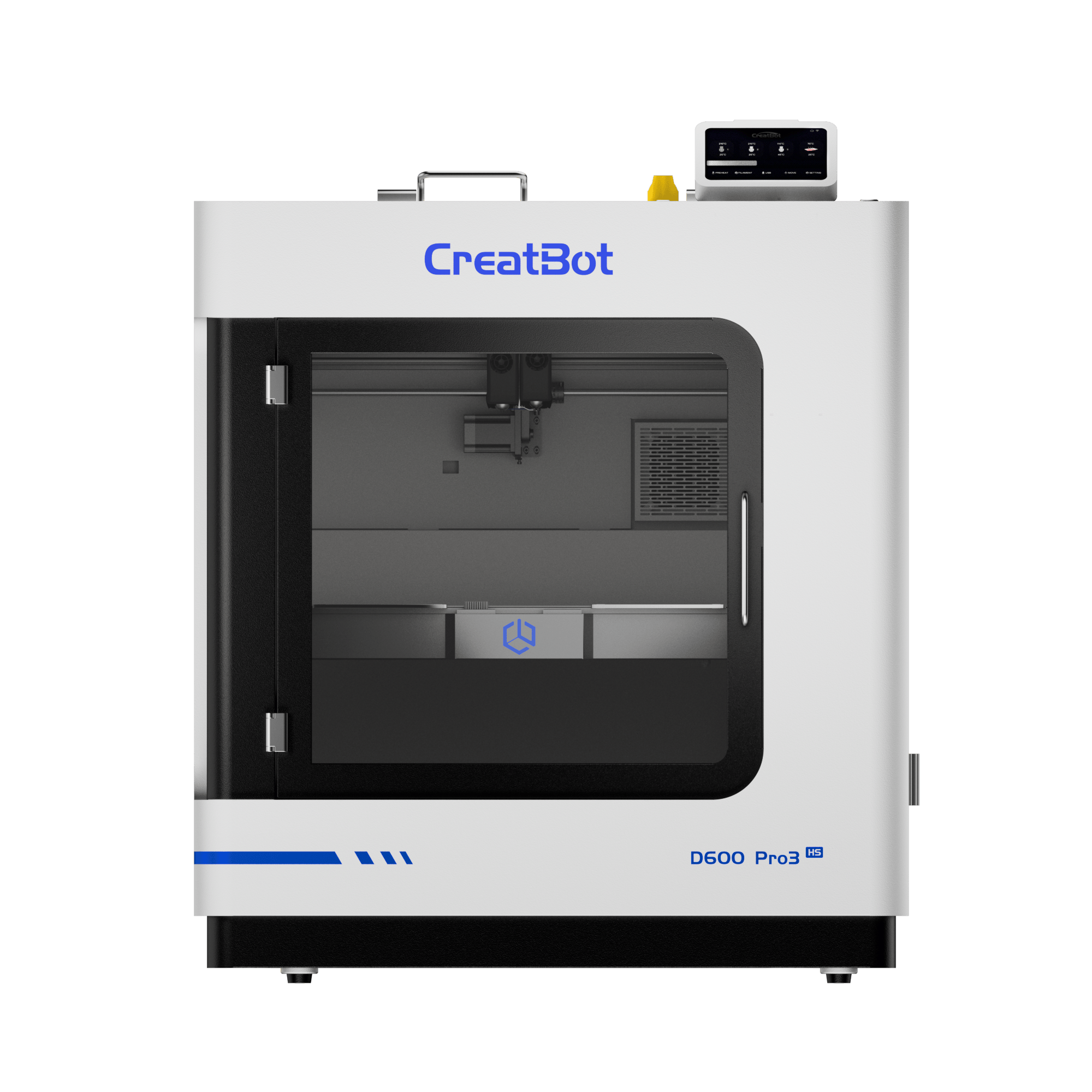

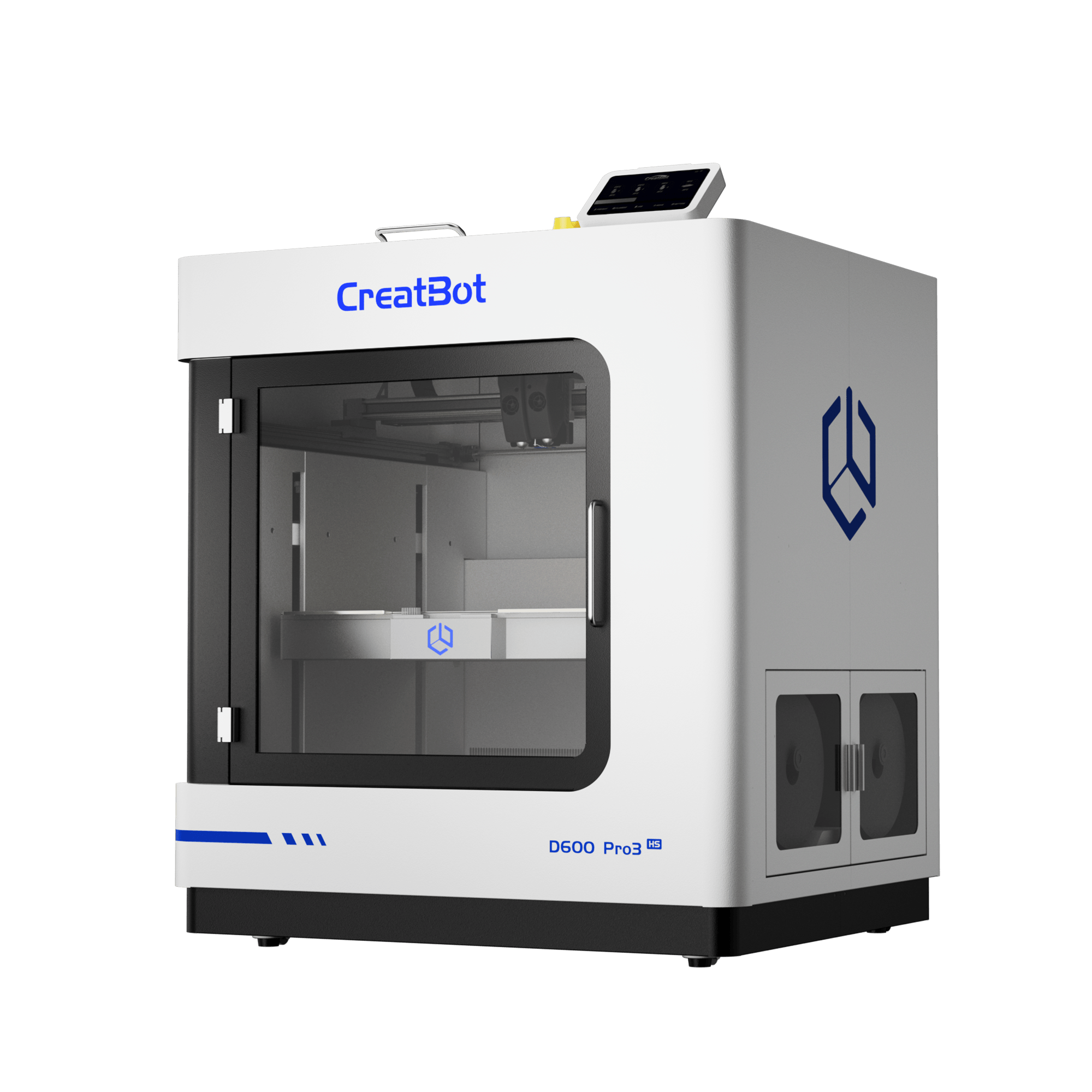

CreatBot D600 Pro3 HS Industrial 3D Printer

The CreatBot D600 Pro3 HS combines a 620 × 620 × 620 mm build volume with high-speed Klipper firmware, auto-rising dual extruders, and an actively heated chamber. Designed for large prototypes, tooling, and parts printed using engineering-grade materials. CreatBot D600 Pro3 HS brings automated nozzle calibration, eddy-current bed leveling, and a removable magnetic platform together in one enclosed industrial 3D printer.

CreatBot D600 Pro3 HS Industrial 3D Printer Product Features

• Large Build Volume
  Print full-size prototypes and large functional parts utilizing a massive 620 × 620 × 620 mm build space. Dual-extrusion printing allows manufacturing quick parts and support structures.

• High-Speed Printing with Klipper Firmware
  The brochure specification table lists a maximum print speed of 600 mm/s and a hotend flow rate of 90 mm³/s. Actual operating speed depends on the material, nozzle, model geometry, and print settings.

• 420°C Auto-Rising Dual Extruders
  The lightweight dual-extruder system automatically raises the inactive nozzle.
  Quick-change hotends for minimum downtime and flexibility, while the 420°C nozzle temperature accommodates a wide range of engineering filaments.

• Automatic Dual Nozzle Shutter
  A mechanical shutter covers the inactive nozzle to help limit oozing and material cross-contamination during dual-material printing.

• Automatic XYZ Nozzle Calibration
  An HD macro camera handles XY dual-nozzle offset calibration, while dual photoelectric sensors manage Z offset. This automated setup reduces manual calibration work when preparing dual-extrusion prints.

• Eddy-Current Bed Leveling and Independent Quad-Z Axis
  Non-contact eddy-current sensing scans the build surface. Four independently driven Z-axis supports provide automatic corner-height compensation to help align the platform with the gantry.

• 80°C Heated Chamber and 120°C Heated Bed
  The actively heated, insulated chamber helps control cooling during large engineering-material prints. The bed reaches up to 120°C, and the integrated filament dry room provides timed temperature control from 0–70°C.

• Removable Magnetic Platform
  A removable magnetic printing platform over an aviation-aluminum build plate simplifies part removal and preparation for the next print.

• Print Recovery and Filament Backup
  Power-loss recovery preserves print progress after an interruption. Filament detection pauses printing when material runs out, and dual-nozzle backup mode can switch to the second nozzle to continue production.

• Remote Monitoring and Local Connectivity
  Monitor printing with the built-in camera and control supported settings through CreatCloud or CreatWare. USB, USB disk, WiFi, and LAN connectivity support both networked and offline workflows.

• External Air Cooling, Filtration, and Door Protection
  External air cooling supports model cooling and protects the leveling sensor from chamber heat. HEPA and activated-carbon filtration, together with a monitored safety door, support operation in an industrial workspace.

CreatBot D600 Pro3 HS Industrial 3D Printer Specifications
