- Complex Printing Capabilities-
Print the most complex geometries including internal cavities with soluble support, or use breakaway support for faster print times. - Sealed Filament Bays
Help keep the material dry, resulting in better print quality and reliability, and METHOD X Carbon Fiber Edition's pre-print spool drying feature allows for the recovery of over-saturated filament. - Ultra-Rigid Metal Frame
Built to offset flexing, prevent failures and ensures uncompromising print quality -
Over 300,000 hours of reliability testing
Rigorous testing on the Ultimaker Method X ensures you receive peace of mind when working on your projects. - 3 Support Options
- Stratasys SR-30 dissolvable support material compatibility for geometric freedom
Availability:
Estimated Arrival: Between Dec 08 and Dec 13. *ETA to Canada Only
Shipping & Returns: Free Shipping Canada wide for All Orders Over $99!
-

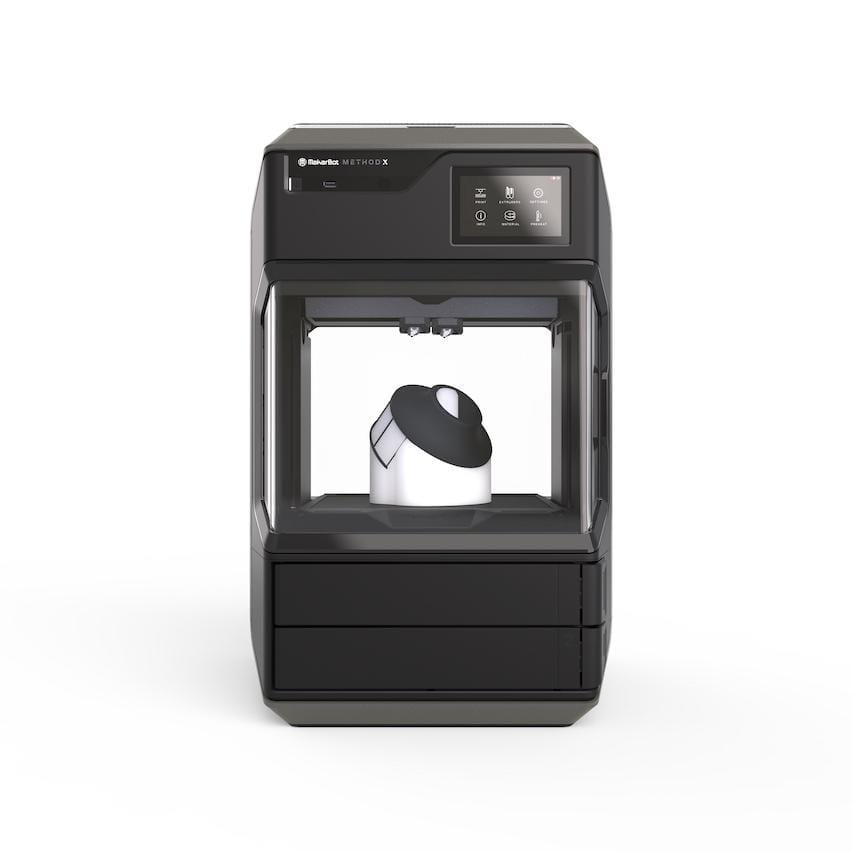

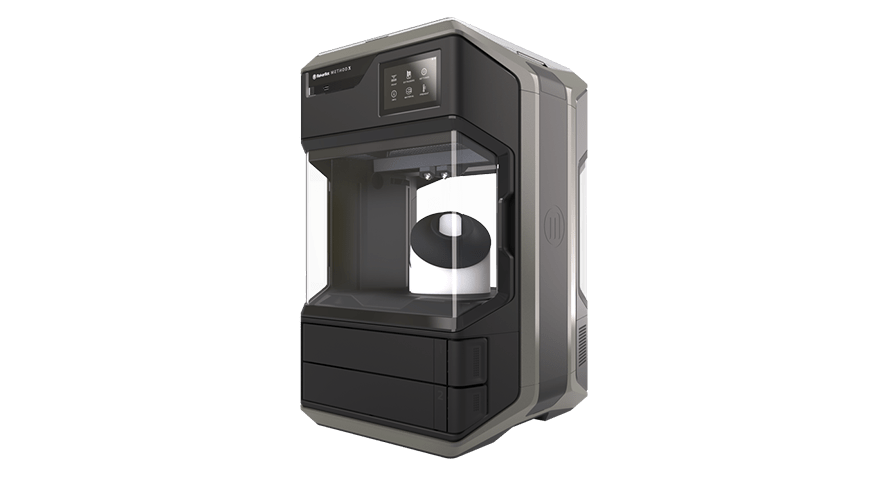

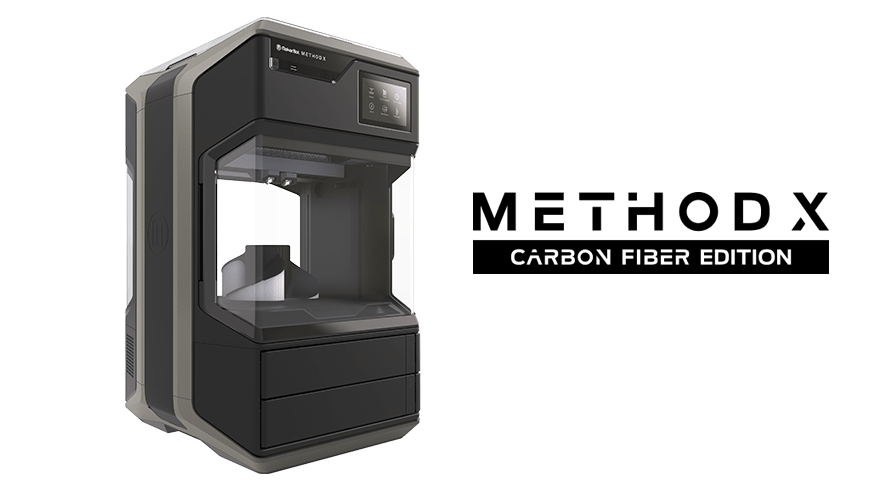

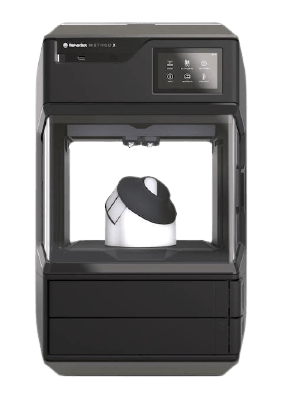

Ultimaker Method X - Carbon Fiber Edition 3D Printer - Performance Dual Extruders, High Precision, For Industries, Professionals Education and Desktop Users
INDUSTRIAL 3D PRINTING FOR EVERY ENGINEERUltimaker Method X - Carbon Fiber Edition is a Next-Generation desktop 3D printing platform that delivers manufacturing-grade parts with advanced engineering materials.
Ultimaker Method X - Carbon Fiber Edition key features
-
Dual Performance Extruders

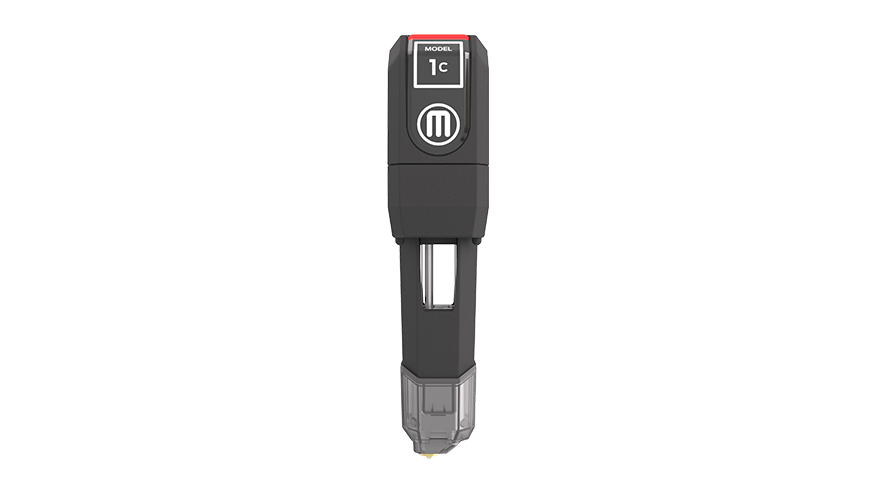

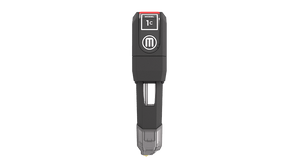

Ultimaker Method X Carbon Fiber Edition is ready to tackle any challenge. - Composite Extruder 1C Model - compatible with Ultimaker METHOD Nylon Carbon Fiber and Nylon 12 Carbon Fiber filament - engineering-grade composites optimized for high strength, stiffness, and heat resistance
- Support 2XA Performance Extruder - compatible with Ultimaker METHOD X SR-30 support filament

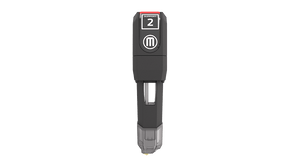

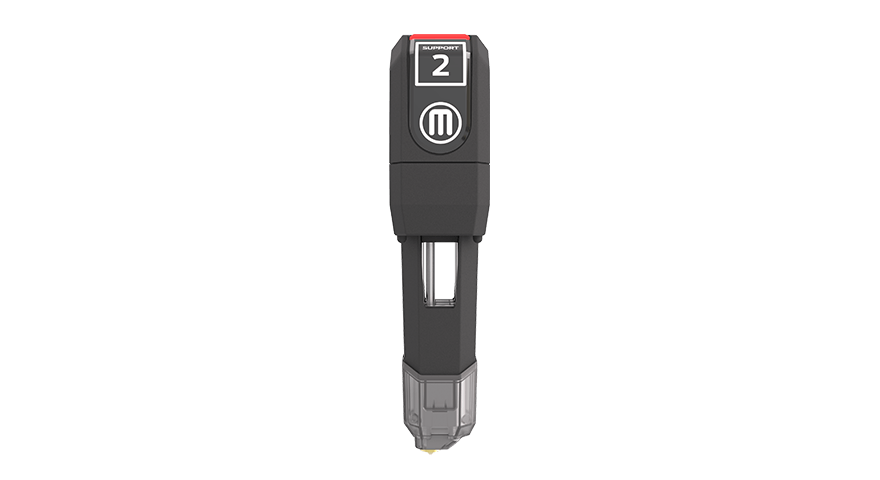

- Performance Extruder 2 Support - compatible with Ultimaker PVA water-soluble support material
-
Heated build chamber (up to 110°C) and dry-sealed material bays ensure top-quality results when using Ultimaker METHOD X
-
Dimensional accuracy ± 0.2 mm
Ultimaker Method X -Carbon Fiber Edition ensures high dimensional accuracy of up to 0.2mm -
Remote Control
Wifi connectivity and on-board camera for remote monitoring and 3D printing
-
Intuitive User Interface
5" full-color capacitive touch screen with intuitive user interface makes the Ultimaker METHOD X super easy to use out the box.
-
Ultimaker Print Software
Optimizes and streamlines the 3D printing process - discover, prepare, manage, and share 3D prints. -
Ultimaker Cloud
Prepare and launch 3D prints from anywhere with Ultimaker Cloud. Open a native CAD file in Ultimaker Cloud, adjust your print settings, and start a print on your connected Ultimaker METHOD X 3D printer. -
Optional MakerCare Protection for fast and comprehensive support (optional add-on)
WHY PRINT WITH CARBON FIBER REINFORCED NYLON?
- Excellent strength to weight ratio (110 MPa TS) for lightweight applications such as robotic end effectors
- Engineering-grade stiffness (7600 MPa Tensile Modulus) for structural applications such as vehicular brackets and inspection gauges
- High heat resistance under load (184°C HDT) for optimal under-hood and tooling applications
ADD A MAKERCARE PROTECTION PLAN TO YOUR Ultimaker METHOD X FOR EXTENDED COVERAGE, FAST SUPPORT RESPONSE TIMES, AND EXPEDITED REPLACEMENT OF DEFECTIVE PARTS.

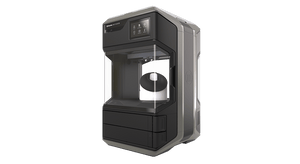

The Ultimaker METHOD X - Carbon Fiber Edition is a professional-grade, tinker-free 3D printer that allows you to print ultra-precision parts. Delivering uncompromised performance right out of the box, Ultimaker METHOD X is the only platform in its category to provide guaranteed dimensional accuracy on printed parts.
Developed from the ground up leveraging industry-leading Stratasys® technology, Ultimaker METHOD X features high quality components like a 110°C heated chamber, precision dissolvable supports, and dry-sealed material bays. Perfect for quick prototypes, fit tests and concept iterations. Ultimaker METHOD X printers deliver maximum innovation with minimal investment.
Ultimaker Method X Carbon Fiber Edition features a structurally optimized metal frame that runs the full length of the body of the printer. This ultra-rigid metal frame was designed with the sole purpose of offsetting flexing, less flexing results in more consistent prints, more accurate parts, and fewer failures overall.
The dual performance extruder system utilized by the Ultimaker Method X was built from the ground up with the goal of accelerating print times and providing higher dimensional accuracy across every part.
Ultimaker Method X comes with built-in smart sensors for material management and print protection automatically detect and alert the user when materials are running low and allow for active jam detection during the entire print duration.
Other features of the Ultimaker Method X such as the Spring Steel build plate, which easily pops out to allow users to queue up their next print, and the 5” full-color capacitive touch screen offers users a highly intuitive and seamless user experience.
-
Dual Performance Extruders
-

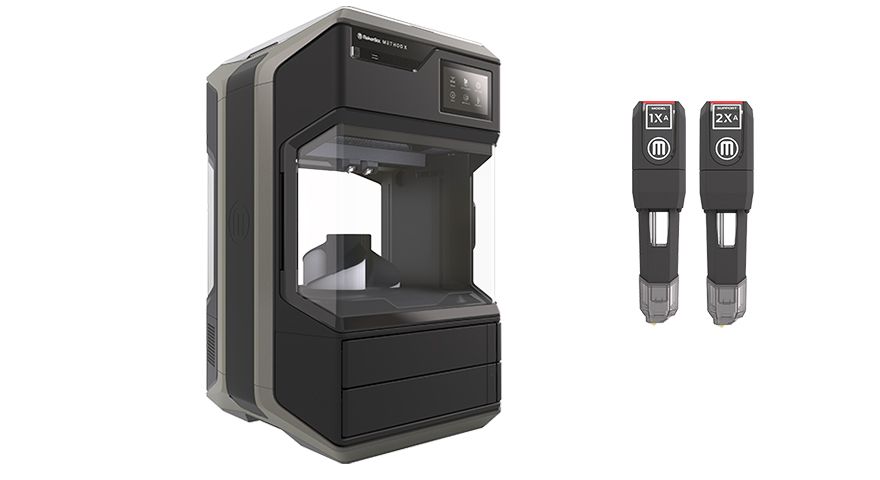

IN THE BOX-
- Ultimaker METHOD X Carbon Fiber 3D Printer ,Spring Steel Build Plate , Performance Extruder 2XA Support, Performance Extruder 2 Support. Nozzle Brush, Hex Key ,USB A-to-B Cable, Power Cord
Ultimaker Method X Carbon Fiber Edition Specifications-General
Printer Type
3D printer (Ultimaker Method X)
Technology
Fused Deposition Modeling (FDM)
Printer
Ultimaker Method XBuild Speed
1.97 in 3/sec
Built-in Devices
Status LCD, RFID reader, jam sensor
Preview Screen Size
5"
Connectivity Technology
Wireless
Interface
USB 2.0, LAN, USB host, Wi-Fi
Resolution
0.0008 in - 0.02 in
Input File Formats Supported
STL, OBJ, Ultimaker , WRL, SLDPRT, SLDASM, IPT, IAM, IGES, IGS, STEP, STP, CATPart, CATProduct, PRT, PAR, ASM, X_T, X_B
Printer Features
(Ultimaker Method X)Built-in camera, flex build plate, material detection, automatic z calibration, automatic nozzle calibration, automatic material loading
Media Handling
Build Materials Supported
Polylactide (PLA), polyvinyl alcohol (PVA), PETG, Tough PLA ,NYLON CARBON FIBER, NYLON 12 CARBON FIBER
Max Build Size
7.5 x 7.5 x 7.75 in
Nozzle Diameter
0.02 in
Networking
Networking
Print server
Expansion / Connectivity
Connections
1 x LAN - RJ-45 USB 2.0 USB host
Miscellaneous
MTBF
220,000 hour(s)
Features
Temperature sensor, humidity sensor, lid sensor, door sensor
Compliant Standards
EMC, FCC, LVD 60950-1
Power
Voltage Required
AC 120/230 V
Frequency Required
50/60 Hz
Power Consumption Operational
800 Watt
Software / System Requirements
Software Included
Ultimaker Mobile, Ultimaker Print
OS Required
Microsoft Windows 7, Apple MacOS X 10.9 or later, Windows 10
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
59 °F
Max Operating Temperature
78.8 °F
Humidity Range Operating
10 - 90% (non-condensing)
Dimensions & Weight
Width
17.2 in
Depth
16.3 in
Height
25.6 in
Weight
65.04 lbs
Dimensions & Weight (Shipping)
Width (Shipping)
19.7 in
Depth (Shipping)
21.9 in
Height (Shipping)
30.1 in
Weight (Shipping)
81.79 lbs
